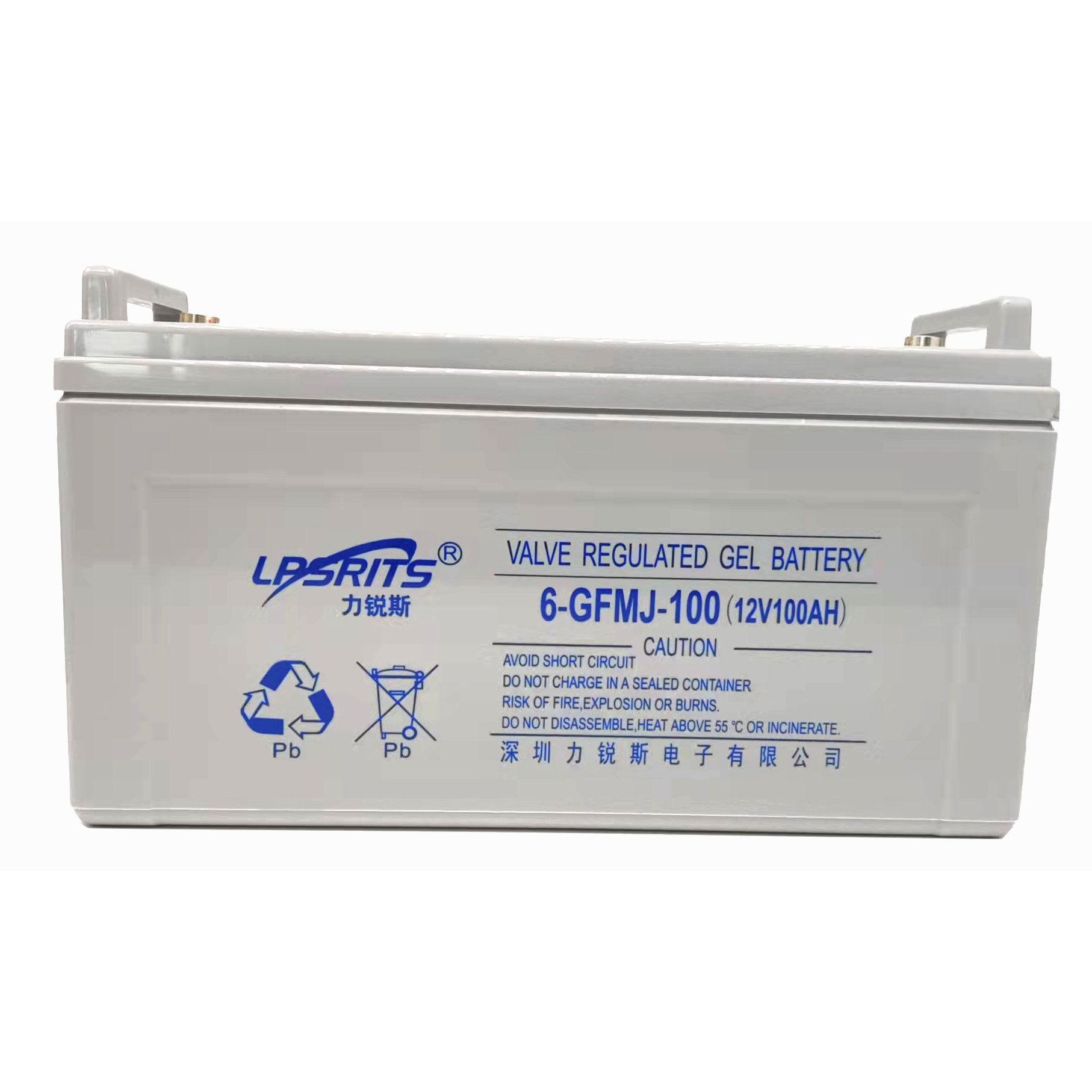

6-GFMJ-100Ah 12V100Ah 阀控密封胶体蓄电池
6-GFMJ-100Ah 12V100Ah 阀控密封胶体蓄电池
6-GFMJ-100Ah 12V100Ah 阀控密封胶体蓄电池，设计浮充使用寿命年10-15年（25℃)；胶体电解质，深放电循环性能优越；独特的密封技术确保极低的爬酸几率；采用阻燃ABS壳子；极低的板栅腐蚀速率及水损耗速，度使工作寿命更长；采用双面涂板技术，确保电池性能一致优越;放电时请将温度控制在-20℃~55℃之间
Specification
Normal Voltage 标准电压 | 12V | |
Rated Capacity(20 hours rate) 额定容量（20小时率） | 100AH | |
Dimension 尺寸 | Total Height (with terminals) 含端子总高 | 240mm |
Length 长 | 407 mm | |
Width 宽 | 173mm | |
Height 高 | 207mm | |
Weight (Approx) 重量 (约) | 38kg | |
Feature
| 20 hours rate 20小时率 | 100Ah | |
10 hours rate 10小时率 | 90Ah | ||
3 hours rate 3小时率 | 75Ah | ||
1 hours rate 1小时率 | 50Ah | ||
Internal Resistance 内 阻 | Full sharged Battery 25℃ 25℃完全充电 | ≤12mΩ | |
Capacity affected By Temperature 不同温度下的放电容量 | 40℃ | 106% | |
25℃ | 102% | ||
0℃ | 80% | ||
-20℃ | 60% | ||
Auto-Discharge 自放电后剩余容量
(25℃) | Capacity after 3 months storage 3个月后 | 91% | |
Capacity after 6 months storage 6个月后 | 82% | ||
Capacity after 12 months storage 12个月后 | 64% | ||
Charge(constant Voltage) 充电方法 （恒压） |
Cycle 循环 | Initial Votage 14.4-14.8V/12 (25℃) Charging current less than 20A 电压在14.4-14.8V /12V (25℃) 最大电流为20A | |
Float 浮充 |
Voltage 13.5-13.7V /12V (25℃) 电压在13.5-13.7V /12V (25℃) | ||
Materials
Composition | Positive plate | Negative plate | Shell | Cover | Separator | Safety Valve | Terminal | Electrolyte |
Materials | Pbo2 | pb | ABS | ABS | AGM | Rubber | Copper | Colloid |
Constant Current Discharge Parameters - Ampere Value: Ampere (25℃)
Constant power discharge parameters - watts per cell: watts/cell (25°C)
The rated operating temperature range of the battery is -20℃--55℃. All technical data are measured at a rated temperature of 25°C. The ideal operating temperature range of the battery is 20℃±5℃. Too high temperatures will shorten battery life, and too low temperatures will reduce usable capacity. The absolute upper limit of temperature is 55°C.
Product characteristic curve
External Dimensions (mm)
Features
●The design life of floating charge is 10-12 years (25℃);
●Maintenance-free, no need to add water and rehydration;
●Unique sealing technology ensures extremely low probability of acid climbing;
●Adopt flame retardant ABS shell;
●Extremely low grid corrosion rate and water loss rate, making the working life longer;
●Colloidal electrolyte, good deep discharge cycle performance and wide operating temperature range;
●Please control the temperature between -15℃~50℃ when charging and discharging.
